Submersible propeller pump type ABS VUPX

Thetys Pumps / Submersible propeller pump type ABS VUPX

Submersible propeller pump type ABS VUPX

Pumping large volumes

The VUPX series of submersible propeller pumps are ideal for applications where large volumes of storm or process water have to be pumped to heads up to a maximum of 10 m. These compact pumps feature highly efficient three- or four-blade propellers with low NPSH characteristic and a space-saving design. They ensure high reliability and efficiency.

Main benefits

Propeller Pumps equipped with Premium Efficiency IE3 motors ranging from 9 to 650 kW for 50Hz.
Propeller Pumps equipped with Premium Efficiency IE3 motors ranging from 19 to 1005 hp for 60Hz.
Pumps available with motor power up to 650kW / 50 Hz and 1005 hp / 60 Hz can optionally be equipped with planetary gear boxes.
Equipped with highly efficient three-or four-blade propellers with excellent NPSH values
Propellers available with adjustable blades and special skew shaped propellers for return activated sludge
Ideal for applications where large volumes of water have to be pumped up to max. heads of 10 m
Designed for direct installation in the discharge pipe or in the concrete risers to save space and reduce installation costs, using the well-proven coupling ring
Improved energy savings
Long-term reliability

Main applications

Storm water protection, irrigation and aquaculture
Screened wastewater from commercial and industrial sources
Combined sewage and surface water
Return sludge or return activated sludge (RAS)
Wet wells, submerged with automatic coupling system

Main design features

Premium Efficiency IE3 motors in acc. with IEC60034-30
Class H (140°C / 284°F) insulation
NEMA class A up to 110 kW / 168 HP, above NEMA class B
Double silicon mechanical seal
Seal protection against spinning fibers
100 000 hours bearing life
Sealed cable connection chamber with two stage cable entry
Lifting hoop (stainless steel as option)
Condition monitoring (temperature, water ingress, option: vibration monitoring)
Explosion-proof version as option (ATEX, FM or CSA)
Planetary gearboxes, driven by four-pole motors, deliver higher efficiency and lower weight compared

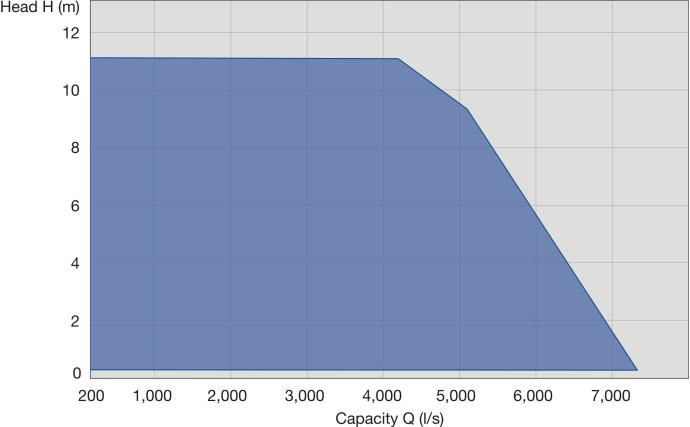

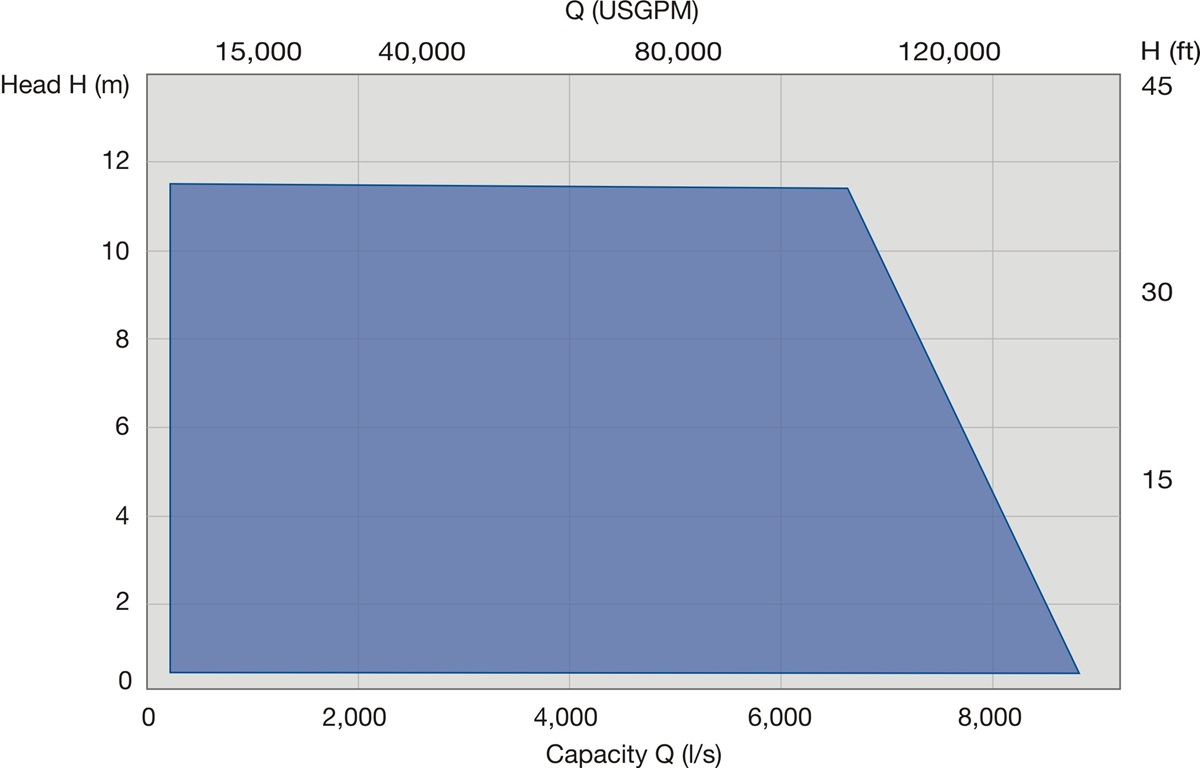

Key characteristics

Discharge sizes	DN 600 to DN 1400
Pipe diameters	600 to 1,400 mm (50 Hz) / 600 to 1,400 mm (23 to 55 in) (60 Hz)
Capacities	up to 7,000 l/s (50 Hz) / up to 8,500 l/s (134,700 USgpm) (60 Hz)
Heads	up to 10 m (50 Hz) / up to 10 m (33 ft) (60 Hz)
Motor power	9 to 650 kW (50 Hz) / 14 to 750 kW (19 to 1,005 hp) (60Hz)
