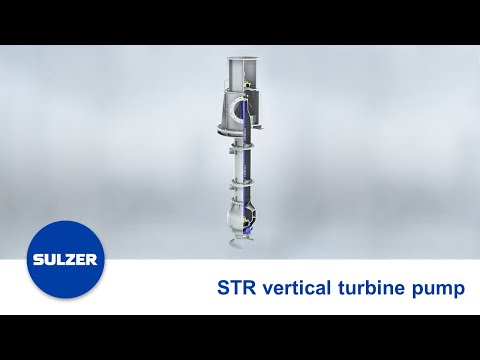

STR vertical turbine pump

Thetys Pumps / Products / Pumps / Vertical pumps / Vertical wet pit pumps / STR vertical turbine pump

STR vertical turbine pump

Multiple-usage vertical turbine pumps built to last

STR pumps are engineered-to-order pumps able to provide good reliability during continuous operation. The STR Vertical Turbine Pumps have been designed to handle clear or slightly polluted fluids in water and industrial applications.

Main benefits

Desalination (sea water intake, brine backwash, etc.)
Water treatment
Water transport
Irrigation
Circulation and cooling water services in power plants
Fish farms
Flood control
Liquefied natural gas (LNG) receiving terminals (seawater intake for LNG vaporizers)
Cooling water auxiliary services for HPI
Dry docks

Main applications

Closed impellers with balancing holes as standard, with open impeller for higher specific speeds
Bowl and impeller removable wear rings (front and rear)
Oversized integrally mounted bearing housing with axial and radial bearings
Above ground discharge head as standard; discharge elbow below foundation available upon request
Shaft sleeves at pump rotor wear parts
Rubber radial guide shaft bearing
Line shaft connections with muff coupling able to transmit all the driver torque to the complete pump rotor

Key characteristics

Capacities	Up to 22,000 m³/h / 97,000 US gpm
Heads	Up to 200 m / 420 ft
Pressures	Up to 25 bar / 362 psi
Temperatures	Up to 65°C / 149°F
Discharge sizes	Up to DN1400 / 56 inches
Maximum speed of rotation	Up to 1,800 rpm
