SJP vertical propeller pump

Thetys Pumps / Products / Pumps / Vertical pumps / Vertical wet pit pumps / SJP vertical propeller pump

SJP vertical propeller pump

Efficiently pumping large flows

SJP Vertical propeller pumps are typically used to pump large flows of water upward at low head from open water sources such as oceans, rivers, lakes, cooling ponds, tanks and sumps.

Main benefits

Wide flow coverage
Propeller pitch positions for maximum capacity handling
Easily modified for changing hydraulic conditions
Versatile and adaptable
Wide choice of materials available depending on the pumped water quality

Main applications

Municipal water supply
Irrigation
Drainage and flood control
Power plant services
Wherever large flows over low heads are required

Main design features

Engineered to balance high efficiency, low submergence and NPSH
Numerous propeller pitch positions for maximum capacity handling
Dual metal and rubber bowl bearings
Fabricated bowl and suction bell options for larger pumps
Optional thrust assembly on pump for motors with limited thrust capabilities

Key characteristics

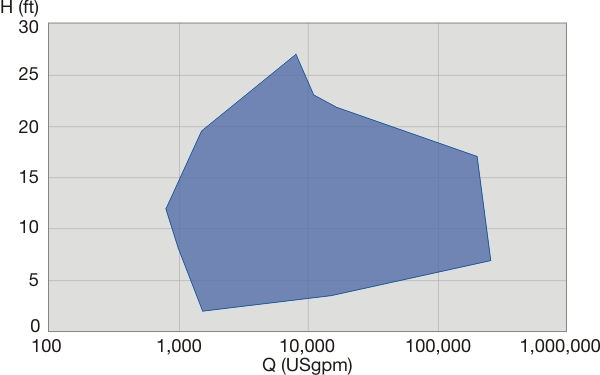

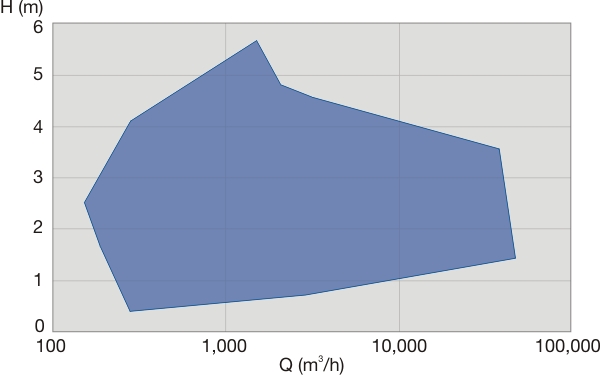

Capacities	200 to 54,500 m³/h / 900 to 240,000 USgpm
Heads	Up to 12 m / 40 ft
Pressures	Up to 2 bar / 30 psi
Temperatures	Up to 50°C / 122°F
Discharge sizes	200 to 2,120 mm / 8 to 72 inches
