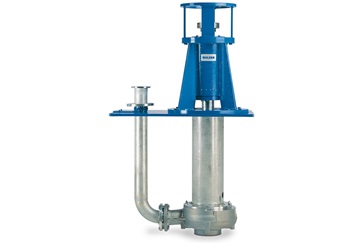

FV cantilever pump

Thetys Pumps / Products  / Pumps  / Vertical pumps  / Vertical sump pumps / FV cantilever pump

FV cantilever pump

Reliable non-clogging sump pumps

FV non-clogging vertical cantilever sump pumps are used for demanding industrial sump pump applications involving large solids containing liquid and slurry. These pumps ensure process reliability, high efficiency and low operating costs.

Main benefits
  • Long and trusted experience in all industrial segments
  • Excellent performance
  • Exceeds standard requirements of international ISO 5199 standard
  • Suitable for the most demanding industrial sump pump applications
  • Unique and superior design features minimize life-cycle costs
Main applications
  • Large solids containing liquids in low sump pump applications
  • Large solids containing fibrous slurries in low sump pump applications

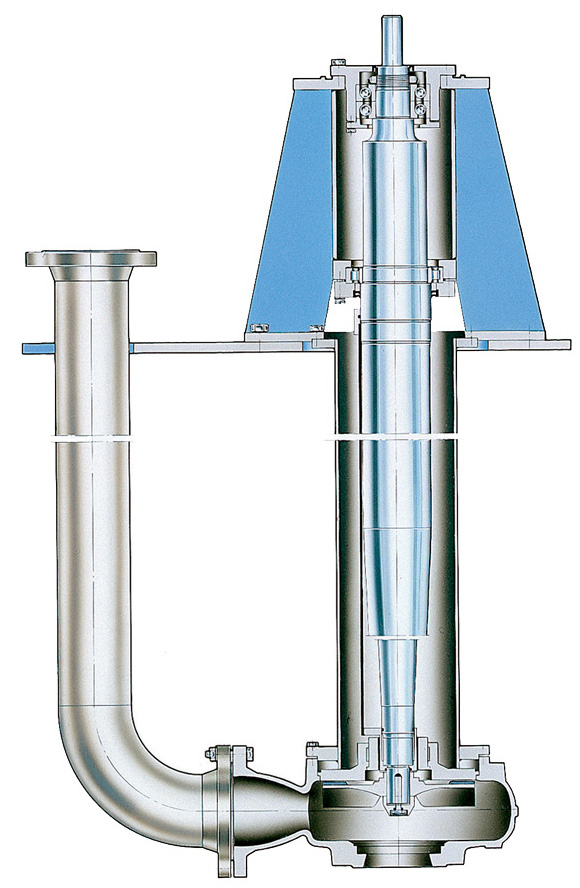

Cross-section of a FV pump
Main design features
  • Versatile, reliable, high-efficiency hydraulics and material options
  • No shaft seal for reliable operation and reduced cost
  • Reliable, simplified, heavy-duty bearing unit
  • Modular design minimizes the spare part inventory costs
Key characteristics
Capacities Up to 170 l/s or 2 600 US gpm
Heads Up to 65 m / 215 f
Pressure Up 1.0 MPa / 150 psi
Temperatures Up to 220°C / 430°F
Discharge sizes From 50 mm / 2 in to 200 mm / 8 in
Maximum speed of rotation 3,000 rpm

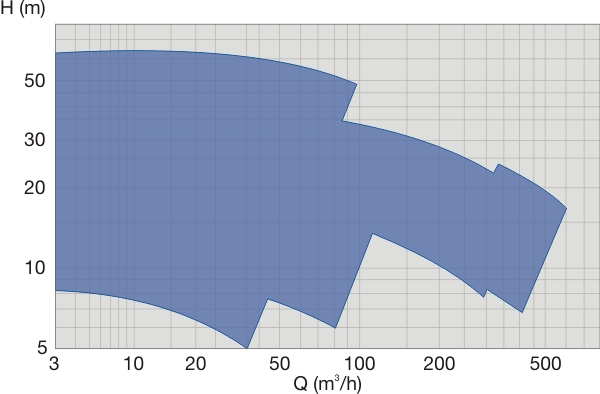

Performance range
FV non-clogging vertical cantilever sump pump performance range 50Hz
FV performance range chart, 50Hz
