BBT/BBT-D process pump
Two Stage Barrel pumps for the toughest services
- Centerline support for reduced thermally induced misalignment
- BBT-D double-suction impeller for low Net Positive Suction Head (NPSH)
- First critical speed is well above operating speed range for smooth operation
- Casing designed for 2x API 610 nozzle loads for freedom from piping distortions
- Grouted or ungrouted, 1x or 2x nozzle load baseplates for reduced installation cost
- Unit charge
- Atmospheric or vacuum bottoms retrofits where Net Positive Suction Head Available (NPSHa) is limited
- Fractionator bottoms
- Coker heater charge
- Boiler feed booster
- Centerline supported casing with top / top nozzles
- Thermal expansion features
- Staggered-vane double-suction impeller on larger sizes
- Proven coke crusher option
- Metco SUME coatings for abrasion resistance

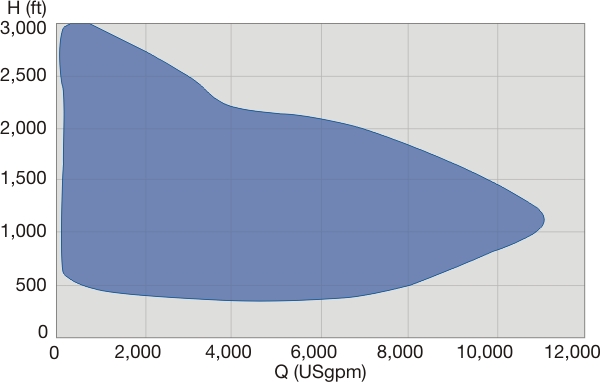

| Capacities |
Up to 2,300 m3/h / 10,000 US gpm |
| Head |
Up to 760 m / 2,500 ft |
| Pressures |
Up to 100 bar / 1,450 psi |
| Temperatures |
Up to 425 °C / 800 °F |
| Discharge sizes |
From 150 to 250 mm / 6 to 10 inches |
| Maximum speed of rotation |
Up to 3,600 rpm |
