Submersible drainage center-line pump JC 6

Thetys Pumps / Products  / Pumps  / Dewatering pumps / Submersible drainage center-line pump JC 6

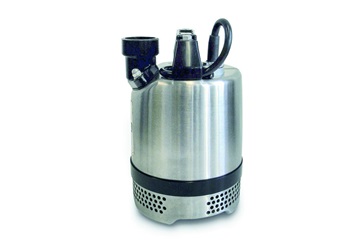

Submersible drainage center-line pump JC 6 (60Hz US)

Lose the water: plug in and go

The submersible drainage center-line pump JC 6 is ideal for pumping water and dirty water mixed with light abrasives. When delivered to a site you can start using them right away. The low weight and compact design ensure convenient transport, handling, and installation. Head max 40 feet, flow max 63 gpm.

Specification
  • Electric submersible pump with double outer casing
  • Class B insulation
  • Maximum submergence 26 feet
  • Motor rating P2 0.6 Hp
  • Speed 3,450 rpm
  • Power Cable 32 ft type AWG
Model
  • JC 6 W medium head 1~ 60 Hz
  • Weight: 30 lb
Motor protection

Built-in thermal motor protector

Discharge connections

2″ NPT threaded connections













JC 6 curve 60 Hz US

Save

Save

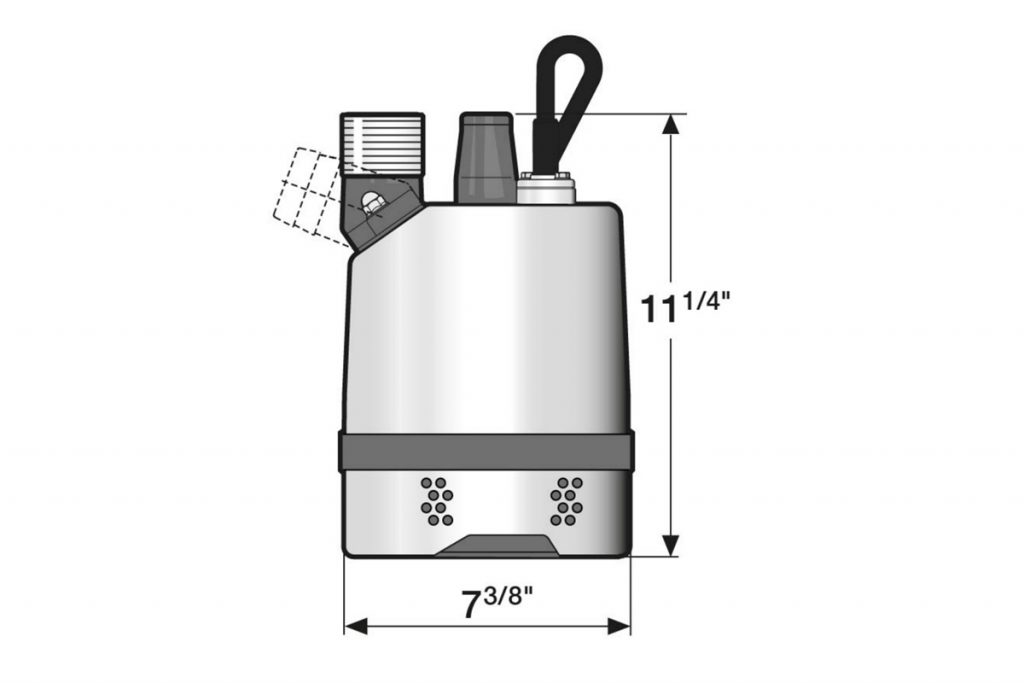

Dimension drawing

Applications

Dewatering in construction

From roads and bridges to ditches and dams, construction sites are difficult places to work. Construction site managers need solid economic reasons for purchasing equipment. Our submersible dewatering pumps provide them.

Dewatering in tunneling

A tunnel construction is a complex worksite were many different variables need to be taken into consideration, flooding is one of them. Our drainage and sludge submersible dewatering pumps are lightweight, portable and start when you plug them in.
