Submersible drainage pump XJ 900

Thetys Pumps / Products  / Pumps  / Dewatering pumps  / Drainage pumps / Submersible drainage pump XJ 900

Submersible drainage pump XJ 900

High-head drainage pump with high-flow capability

The innovative design allows this high-efficiency pump to be used both in high-head and high-flow applications. 50 Hz: head max 200 meters, flow max 120 l/s. 60 Hz: head max 230 meters (754 feet), flow max 130 l/s (2’090 gpm).



Main benefits
  • High-efficiency IE3 motor for reliable operation
  • High wear resistance ensures years of cost-efficient pumping
  • Flexible design makes it easy to convert the pump for different hydraulic requirements
Model
  • XJ 900 HD high head 3-phase
  • XJ 900 ND high flow 3-phase

Weight: 1’200 kg (2’646 lb.)

See our performance ranges

Performance range – XJ900, 50 Hz

Performance range – XJ900, 60 Hz

Performance range – XJ900, 60 Hz US

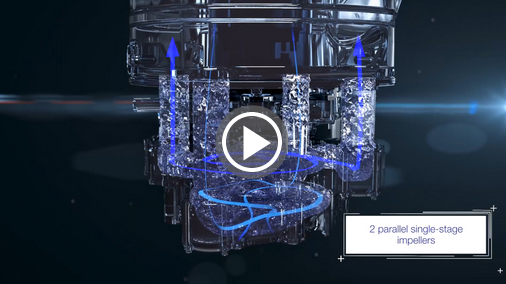

Watch the easy conversion from high-head to high-flow configuration

Motor protection

Motor protection

  • Thermal control system with temperature sensors in the motor windings for automatic shut-down in case of overheating
  • Seal monitoring system with leakage sensor in the junction box and motor chamber for automatic shut-down if water has entered the pump
  • Leakage sensor in the oil chamber indicating presence of water in the oil
  • Optional bearing monitoring system with temperature sensors at upper and lower bearing indicating excessive temperature

Discharge connections

DN 100/4” (standard HD)
Flange connection PN40 DIN 1092-1
Flange connection class 250 ASME B16.1 1998

DN150 / 6” (standard ND)
Flange connection PN40 DIN1092-1
Flange connection class 150 ASME B16.5 1998

Save

Benefits

Reliable operation

Strong cast iron construction with outer casing gives good cooling and enables the pump to run at operating water levels all the way down to the strainer.

Wear resistance

One investment for years of cost-efficient pumping. Impellers built back to back together with double exit volutes, and flow elbows in white cast iron ensure a long lifetime and high efficiency.

Flexible hydraulics

For easy conversion from ND to HD the pump is fitted with impellers and diffusers for both HD and ND versions. This give the option to stock fewer pumps and still have the right hydraulic performance for the job.

Dimension drawing

50 Hz
Electric submersible pump XJ 900
Maximum submergence 80 m
Protection class IP 68
Max. temperature of pumped medium at max. power input and continuous duty 40ºC
Max. media density 1,100 kg/m3
pH of the pumped medium 5-8
Strainer hole 8 x 34 mm
Max number of starts 15/hr
Motor rating P2 90 kW
Speed 2’970 rpm
Power cable 20 m type NSSHOEU

Save

60 Hz
Electric submersible pump XJ 900
Maximum submergence 80 m
Protection class IP 68
Max. temperature of pumped medium at max. power input and continuous duty 40ºC
Max. media density 1,100 kg/m3
pH of the pumped medium 5-8
Strainer hole 8 x 34 mm
Max number of starts 15/hr
Motor rating P2 108 kW
Speed 3’560 rpm
Power cable 20 m type NSSHOEU
60 Hz US
Electric submersible pump XJ 900
Maximum submergence 262 ft.
Protection class IP 68
Max. temperature of pumped medium at max. power input and continuous duty 104ºF
Max. media density 0.0397 lb/inch3
pH of the pumped medium 5-8
Strainer hole 5/16” x 1 5/16”
Max number of starts 15/hr
Motor rating P2 145 Hp
Speed 3’560 rpm
Power cable 65 ft type W
Applications

Mine dewatering

Efficient water management is essential for any mine site, especially where the conditions are challenging and the weather is changeable, unpredictable or the rainy season is coming. That’s why we’re expanding our XJ range of dewatering pumps to be able to handle even the most difficult applications, whilst maintaining excellent hydraulic performance.

Dewatering in construction

From roads and bridges to ditches and dams, construction sites are difficult places to work. Construction site managers need solid economic reasons for purchasing equipment. Our submersible dewatering pumps provide them.

Dewatering in tunneling

A tunnel construction is a complex worksite were many different variables need to be taken into consideration, flooding is one of them. Our drainage and sludge submersible dewatering pumps are lightweight, portable and start when you plug them in.

Flood control

Climate change is challenging natural disaster prevention. When water runs off the land in large quantities, Sulzer’s comprehensive range of pumps provide reliable, cost effective and efficient solutions for flood control.

Mining

Whether on the surface or underground, the conditions in mines are harsh. Besides the mud, slurry, stones, and rocks, there are large volumes of water to remove in order to keep production moving. Our dewatering pumps are rugged and ready, taking on the toughest drainage and sludge removal.
