SMH axially split single stage pump

Thetys Pumps / Products  / Pumps  / Axially split pumps / SMH axially split single stage pump

SMH axially split single stage pump

Extensive coverage for low pressure services

SMH pumps are part of the broad single stage, double suction, horizontal split case family within Sulzer. Flowrates are provided to over 11,000 m3/h (50,000 GPM) and heads to over 200m (650 ft).

Main benefits
  • Between Bearing design for reliability at high flow rates
  • ISO 13709 (API 610) compliance
  • Broad hydraulic coverage at 50 and 60 hertz speeds
  • Axially split casing for ease of repair
  • Vertical shaft (SMHv) for limited deck space applications
Main applications
  • Onshore cooling water
  • Offshore seawater
  • FPSO offloading
  • Closed cycle cooling
  • Tank Farm boosting
  • Booster pumps for all pipeline applications
  • FPSO seawater lift applications
Main design features
  • Double suction impeller
  • Axially split casing
  • Inline nozzles
  • Classically stiff rotor
Key characteristics
Capacity Up to 11,000 m3/h  /  50,000 GPM
Head Up to 200 m  /  650 ft
Pressure 15 to 26 Bar  /  220 to 380 psi
Temperatures Up to 150 ºC  /  300 ºF
Discharge sizes Up to 800 mm  /  32 inches
Maximum speed of rotation Up to 3,000 rpm
Performance range

Performance range 50 Hz

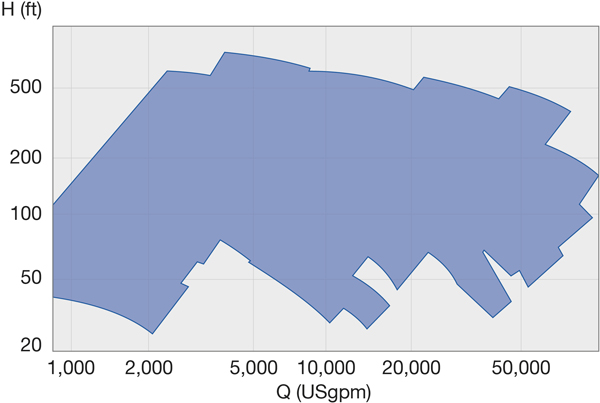

Performance Range 60 Hz
