Sense condition monitoring solution

Thetys Pumps / Products / Digital solutions / Sense condition monitoring solution

Sulzer Sense condition monitoring solution

Let Sense take care of your pump 24/7

The solution detects possible equipment failures early on and optimizes maintenance planning. The data can be easily viewed on a laptop, tablet or smartphone.

Main benefits

Automated monitoring 24/7
Regular manual measurement or monitoring are not needed
Easy to install and use
Access to accurate data anytime anywhere
Helps optimizing preventive maintenance and minimizes risk for unplanned downtime

Main applications

Suitable for all pumps, agitators, mixers and motors regardless of the type or brand in all industries.

Main design features

Measures temperature and vibration
Water and dust-proof
Wireless mesh
Sensors battery-operated, gateway connects to power supply
Cellular, WLAN and Ethernet network
Plug and play
Ambient temperature -40°C to +85°C / -40°F to +185°F

Sulzer Sense monitoring concept

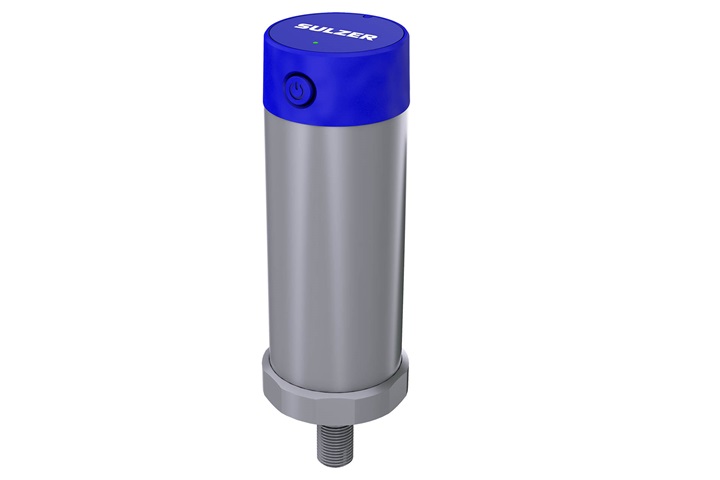

Wireless sensors attached to the equipment measure temperature and vibration in three axis and send the data into the cloud service via gateway.

Routing sensor

Mesh network can be extended with routing sensors if the gateway or sensors are too far away from each other blocking the data transmission
Routing sensor routes measurement data from sensors to the gateway
Shares technology with measurement sensor

Gateway

Collects data from sensors and sends it to the cloud
Connected to power supply
Cellular, WLAN, Ethernet network
Standard indoor enclosure (IP20) as well as protected enclosure (IP67) available
Plug and play

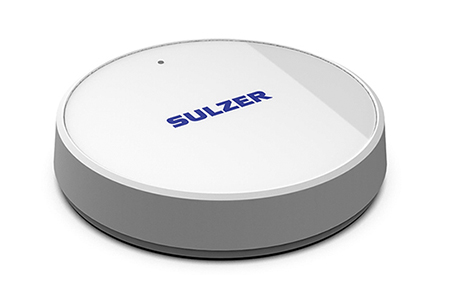

Standard indoor enclosure

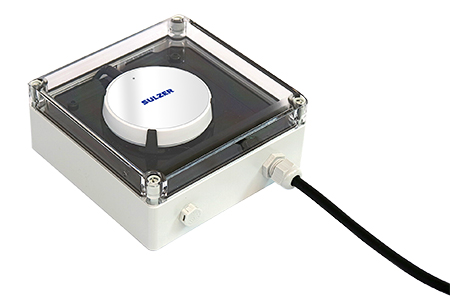

Water and dust-proof enclosure
