Prefabricated pumping stations in containers
Prefabricated pumping stations in containers
The advantages of the solution are:
• possibilities to connect to existing or new SCADA systems
• low investment costs
• quick and easy to install
• warranty for the entire installation + container
• design and technology adaptable according to customer needs
• quality and reliability

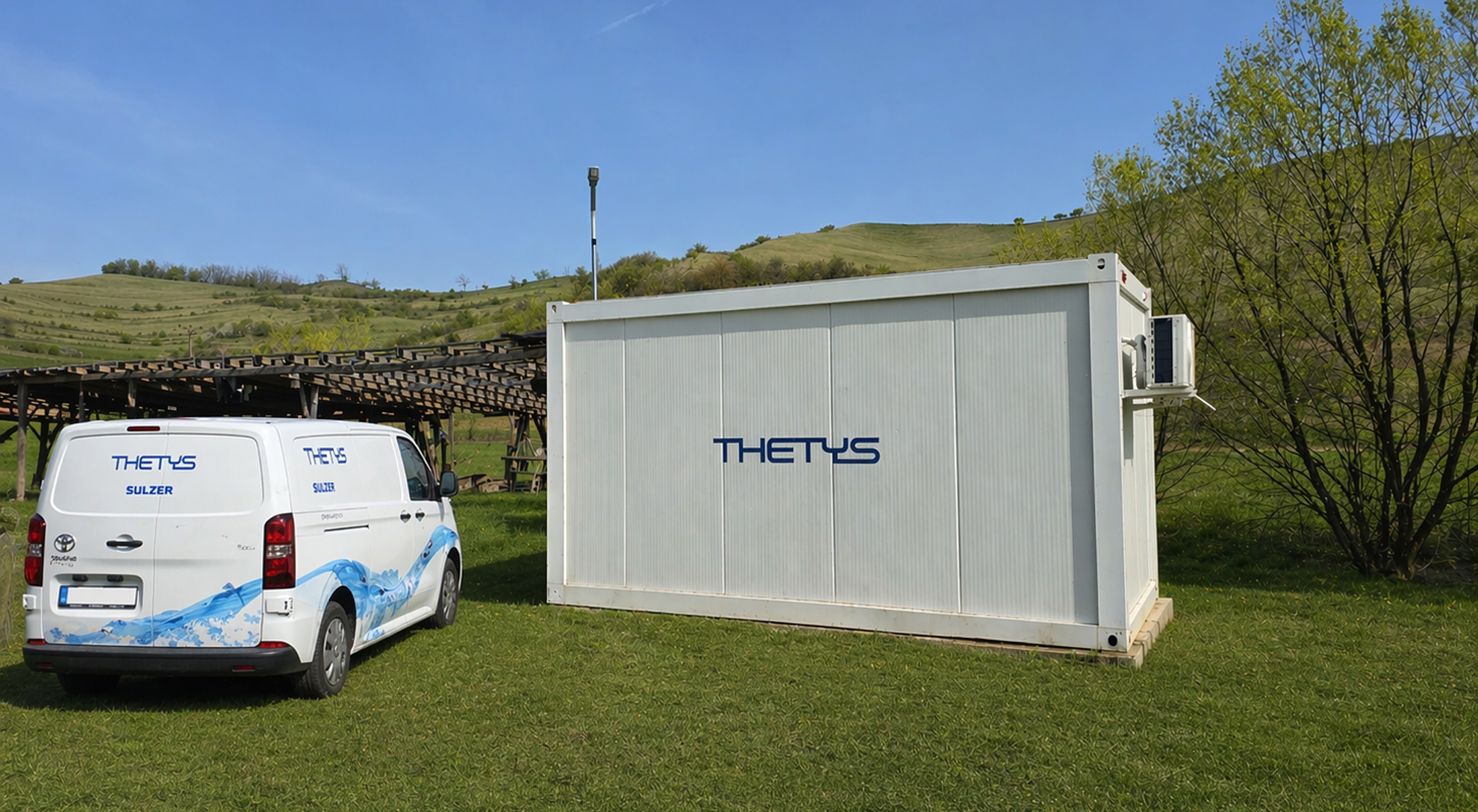

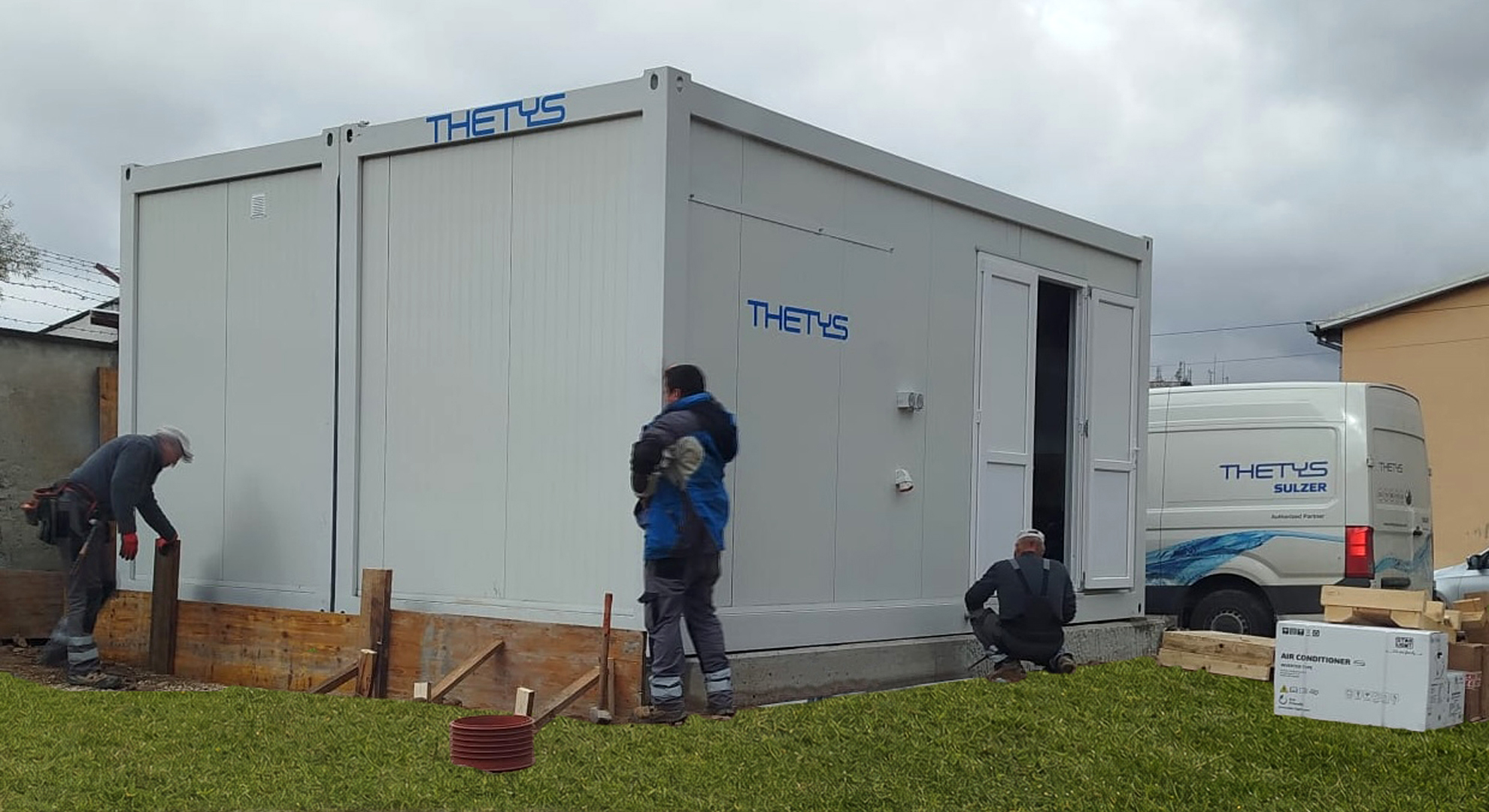

Constructive characteristics of the container
• size range L=2-10m x l=2-2.5m x H=2-3m
• isopan walls with a thickness of 50 mm or 100 mm
• anti-burglary thermopane glass
• single or double anti-burglary metal doors
• structure on a metal skeleton with isopan panels (corrugated sheet)
• compartmentalization possibilities according to needs
• concrete floor with floor siphon and drainage pipes
• interior lighting circuit and socket circuit
• electric radiator
• wall fan or air conditioner

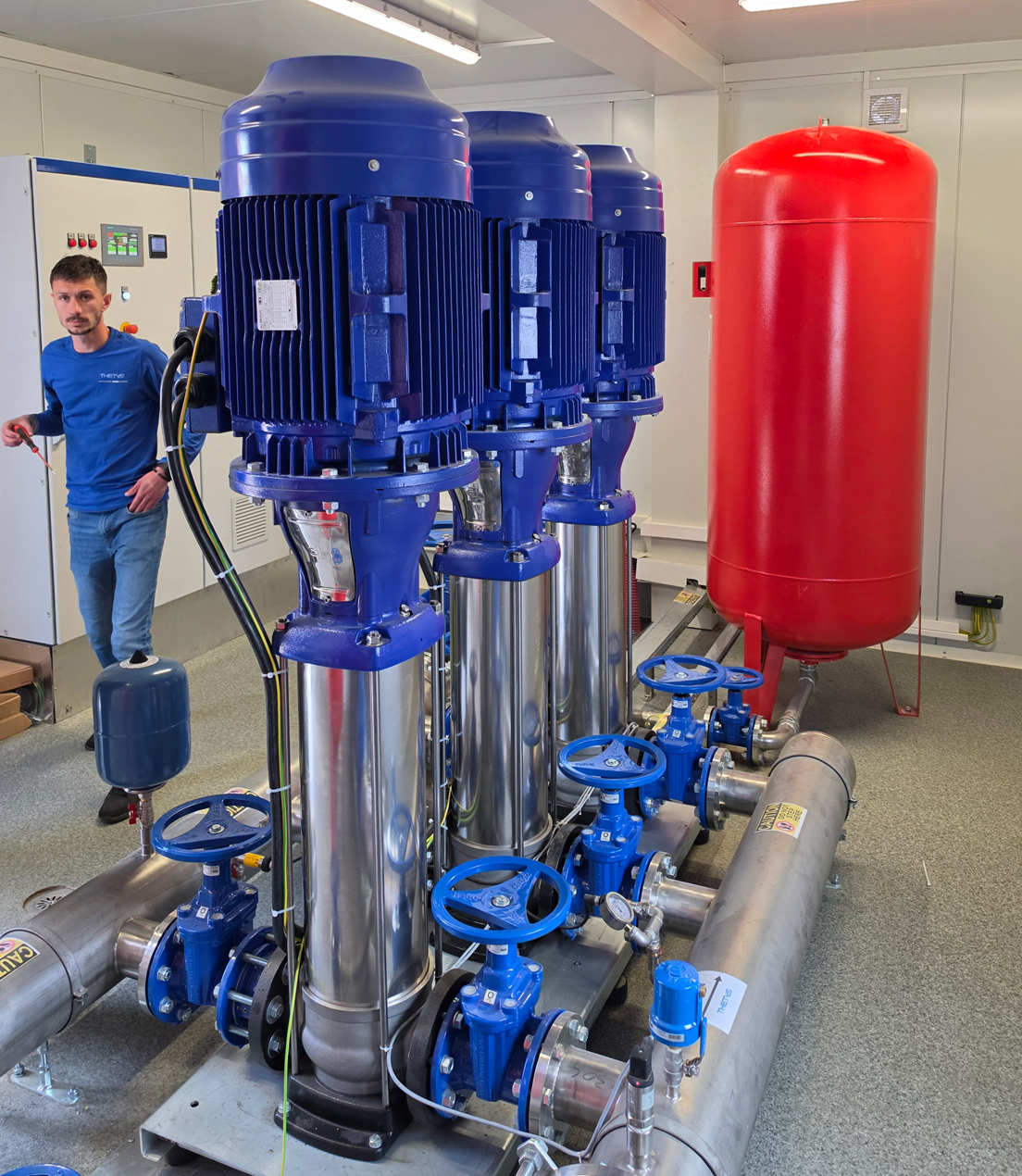

Possibilities of equipping the installations in the container
• pumping group with pumps: vertical multi-storey submersible wells in the pressure jacket with horizontal dry mounting
• AISI304 or AISI316 stainless steel hydraulic installation
• hydraulic vessel on suction and/or discharge group
• electromagnetic flow meter
• automation panel
• hypochlorite chlorination installation (dosing system, Cl2 measurement and control system)
• anti-burglary system
