End-suction EN733 centrifugal pumps SES and SKS
Directly off the shelf – centrifugal pumps for clean water
SES is a long-coupled pump that can be delivered as a complete skid or as bare shaft pump connected to an existing electric motor.
SKS is a close-coupled (monoblock) pump with electric motor that can be supplied with a frequency converter.
- Certified for use with drinking water
- Reliable operation even in high-pressure applications
- Easy maintenance with “back pull-out” design
- Heavy-duty construction for continuous operation
- Maintenance-free bearings for increased service life
- Free position of SKS with horizontal, sloping or vertical axis to meet any installation needs
- Water supply facilities
- Water distribution networks
- Irrigation
- Heating and cooling systems
- General industry applications
- Suitable for high-pressure applications with flanges in PN 10 and PN 16
- “Back pull-out” design makes it possible to remove hydraulic parts without having to remove the pump body from the plant pipes
- Dynamically balanced closed impeller to minimize radial loads and provide smooth rotation of impeller
- Suction profile designed to reduce NPSH for trouble-free operation in demanding conditions
- Stainless steel shaft designed to withstand the bending-torsion load
- Oversized ball bearings provide reduced working noise and a long service life
- Large selection of mechanical seals or gland packings (SES) configured according to the requirements of the fluid characteristics and conditions of use
Optional features
- Easy replaceable wear rings to protect the pump body and the impeller (standard for larger sizes)
- SES: Oil-lubricated bearings with a constant level oil feeder
Key characteristics SES
|
50 Hz |
60 Hz |
| Capacities |
up to 2’000 m3/h |
up to 2’700 m3/h (11’889 USgpm) |
| Heads |
up to 130 m |
up to 120 m (394 ft) |
| Power |
up to 400 kW |
up to 400 kW (536 hp) |
| Temperatures |
-15°C / +90°C (+120°C on request) |
+5°F / +194°F (+248°F on request) |
| Maximum speed of rotation |
3’000 rpm |
3’600 rpm |
Brochures
Installation manuals
Getting drinking water to all parts of a distribution network involves many challenges along the way. From the water treatment plant through pumping stations and beyond, Sulzer pumps lift and move the drinking water to bring it to its destination at sufficient flow and pressure.

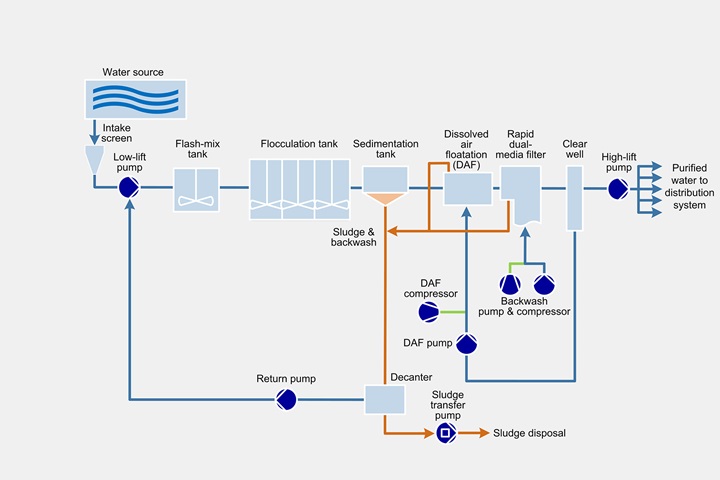

When planning new water treatment plants or upgrading existing ones, operating costs are as important as investment costs. Sulzer’s innovative pumps, mixers and compressors combine reliable treatment performance with superior energy efficiency.
